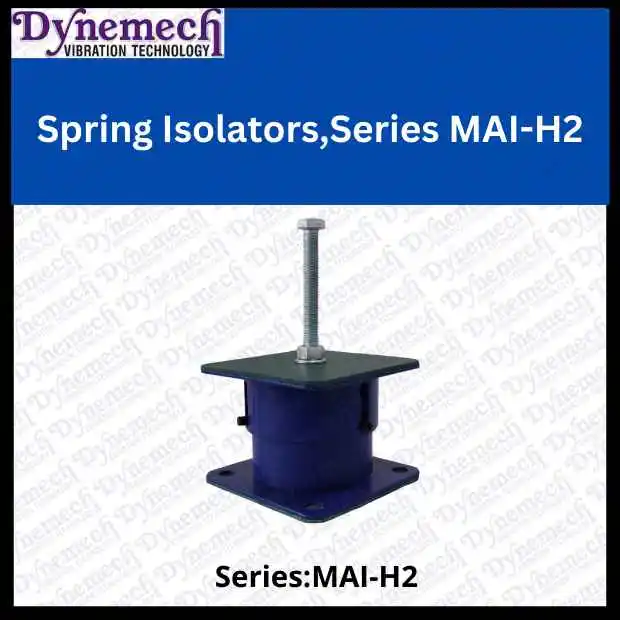

Spring Isolators,Series MAI-H2-Dynemech Systems Pvt Ltd

Dynemech Spring Isolators provides high vibration isolation to plant and machinery and HVAC equipments.These isolators are compact and economical.
" HO(mm):66mm To 92mm
HI(mm):86mm To 101mm
Load (Kg):25-200Kg/pc To 500-1400 Kg/pc
Bolt Size:M12X1.75X100mm To M12X1.75X100mm
Top Plate (AxB)(mm):110x110(mm) To 125x125(mm)
Bottom Plate (CxD)(mm):110x110(mm) To 125x125(mm) CC(mm):90mm To 95mm
Natural Frequency Range(Hz):3.5-10Hz To 5.0-09Hz
Weight Of 04 Nos ( Kg.):11 Kgs
Box Dimension:13""X8""X7""
Number Of Box-01
Material: Low Carbon Steel & Rubber
Colour: Blue & Grey
